Advance Traders

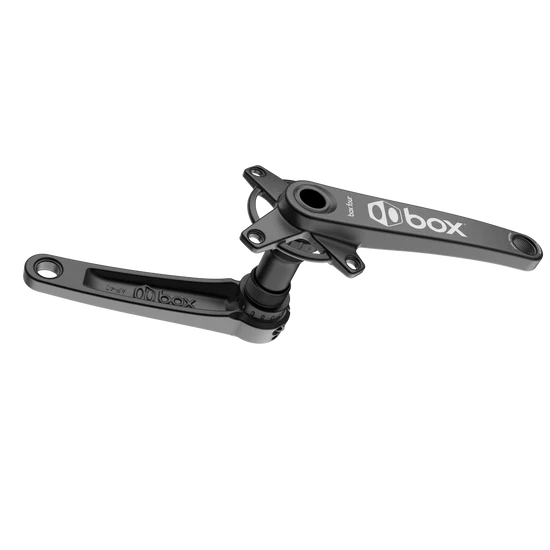

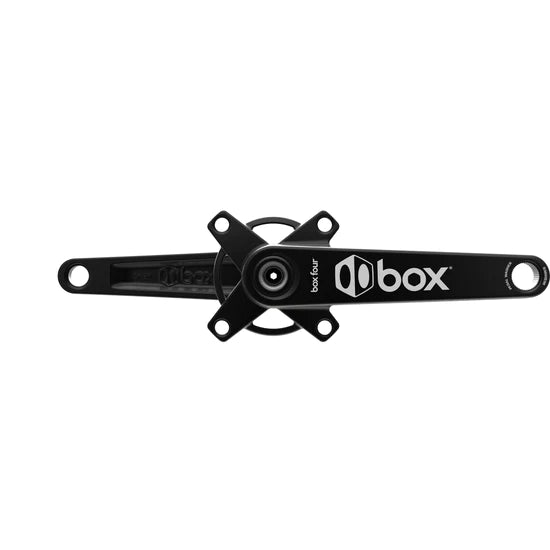

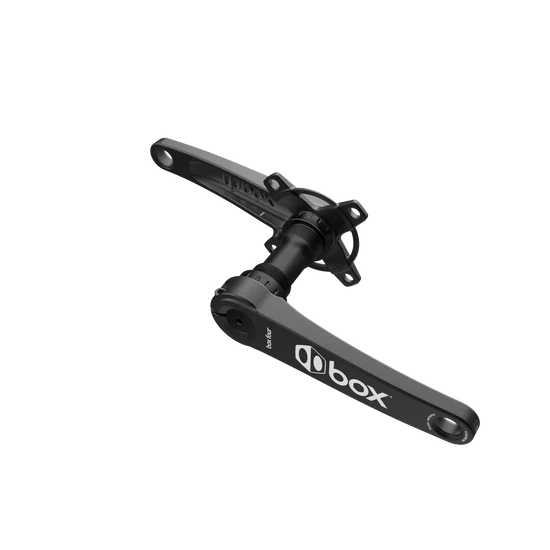

BOX Four 2-Piece Crankset

BOX Four 2-Piece Crankset

$289.00 AUD
$289.00 AUD $289.00 AUD
Sale Sold out
Tax included.
Size

The Box Four Crankset features a 2-piece design with an oversized bottom bracket interface. The 24mm spindle is pressed into the drive-side crank arm for durability and easy installation. The non-drive side crank arm features a 2-bolt pinch system for added strength. Our unique 4-bolt 104 BCD spider features a flex-resistant ring for optimum performance.

Box Four Cranks feature steel pedal inserts that require pedal washers and external sealed bearing BSA bottom brackets, and both are provided in the box.

    For compatibility questions, please click here.



    Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard

    Oversized Bottom Bracket Interface
    Durable Cold-Forged Construction
    Dual Pinch Bolts for Even Clamping Force
    4-bolt 104 BCD Spider with Flex-Resistant Ring
    24mm Chromoly Spindle

    160mm 165mm 170mm
    BB (Included): BSA 1.37
    Spindle: 24mm Chromoly
    Material: 6061 T-6 Aluminum
    Process: Cold-Forged
    Chainline: 44.5mm
    Torque specs: 12-14 nM
    Weight: 900 grams / 31.7 ounces, 900 grams / 31.7 ounces, 900 grams / 31.7 ounces
