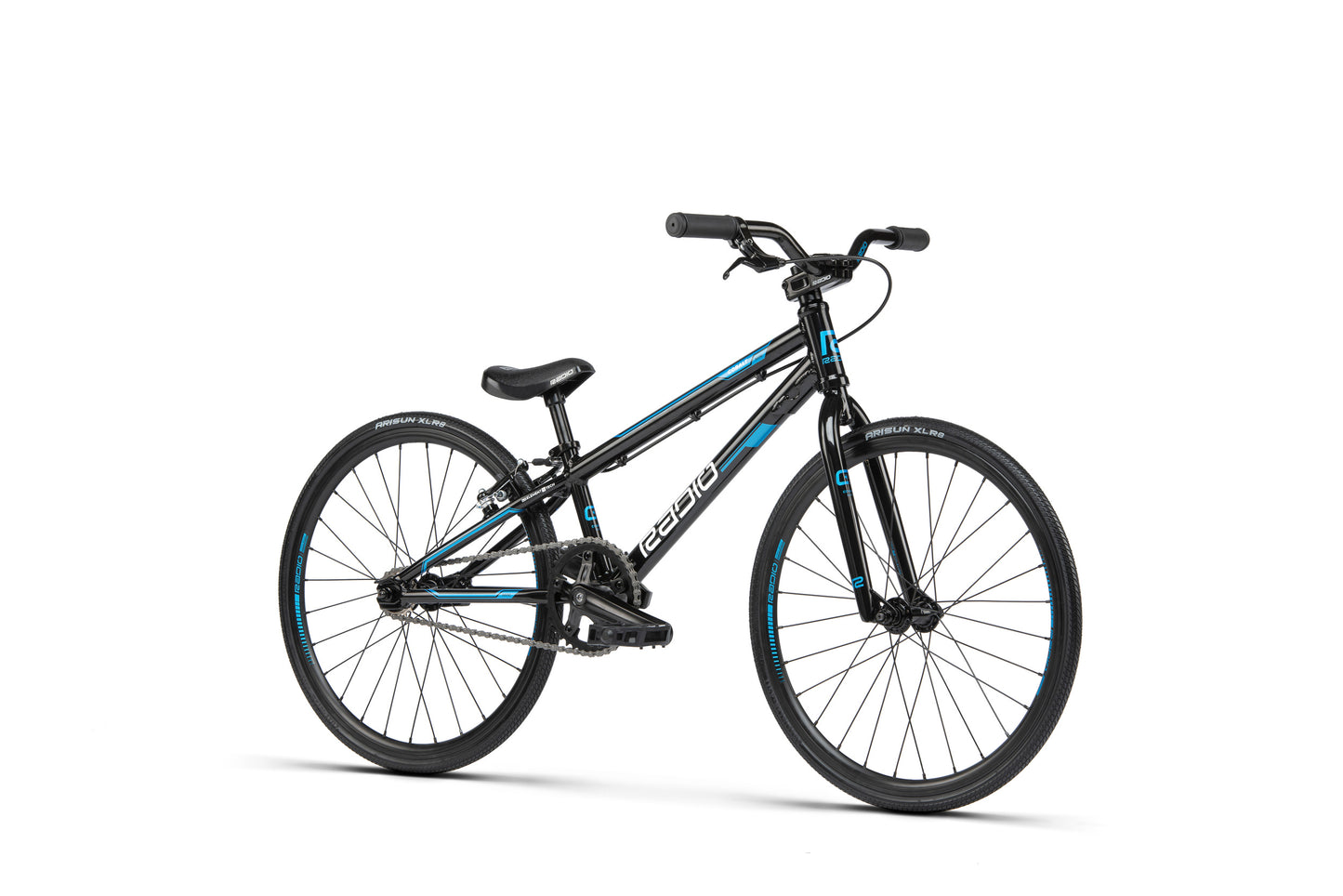

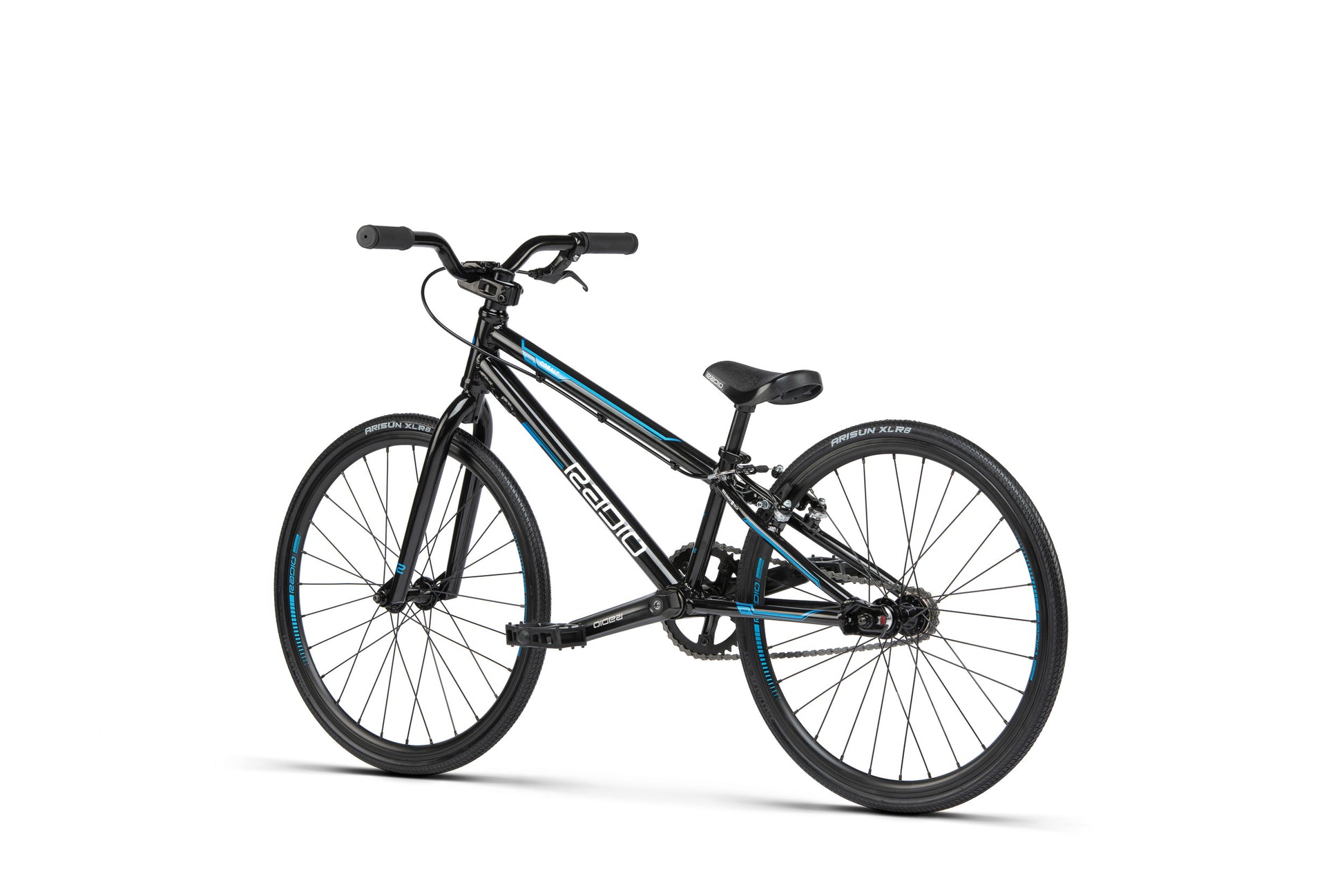

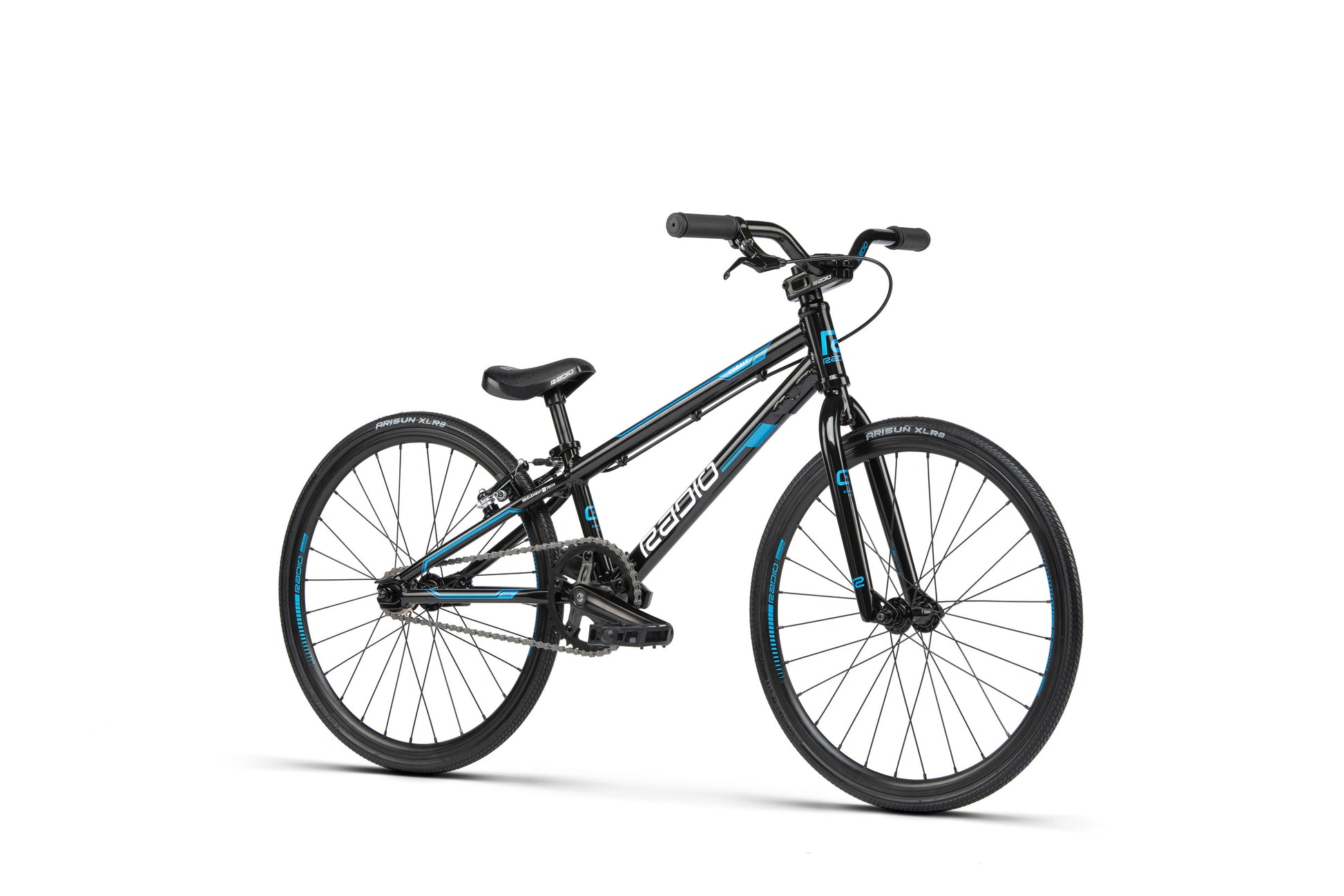

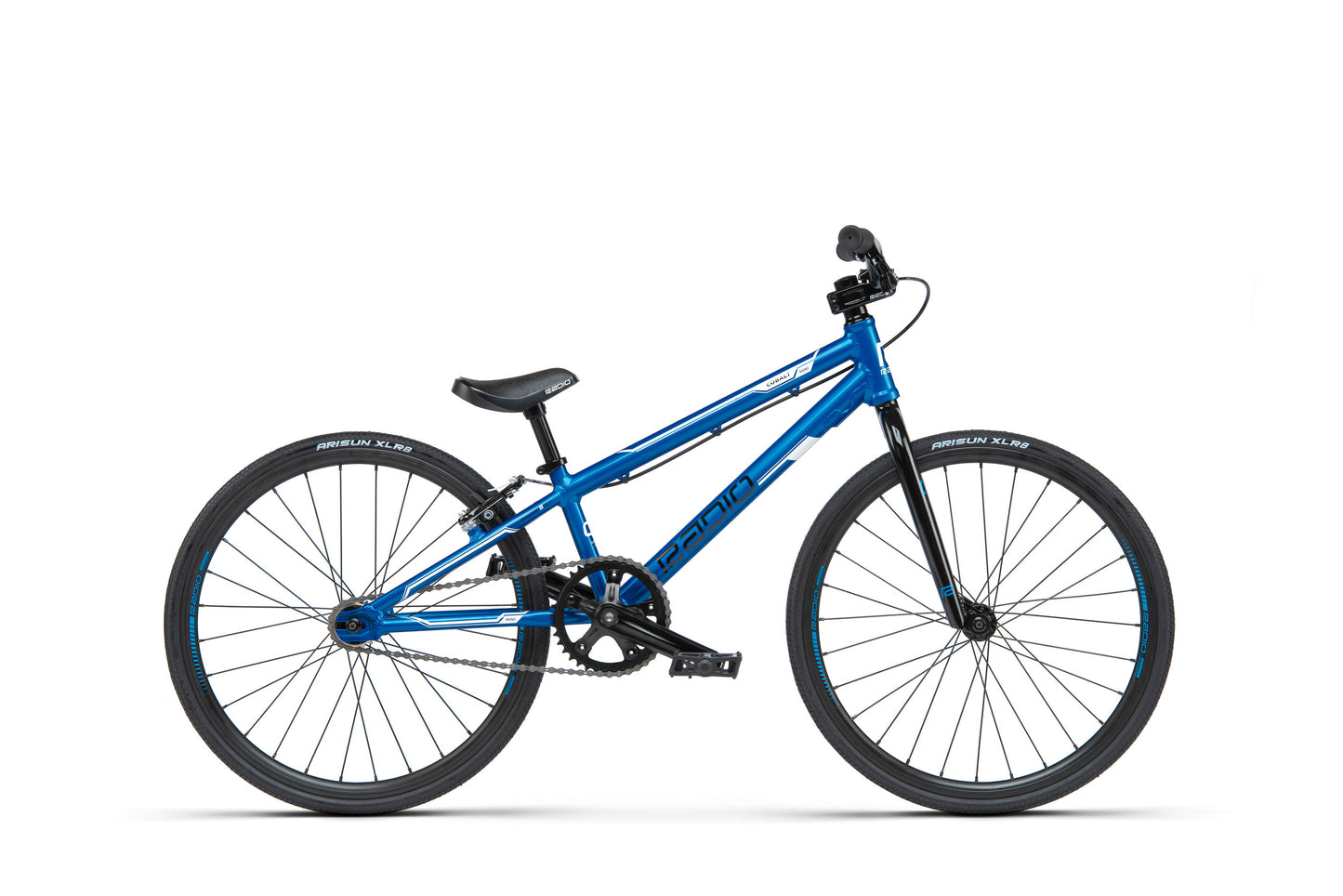

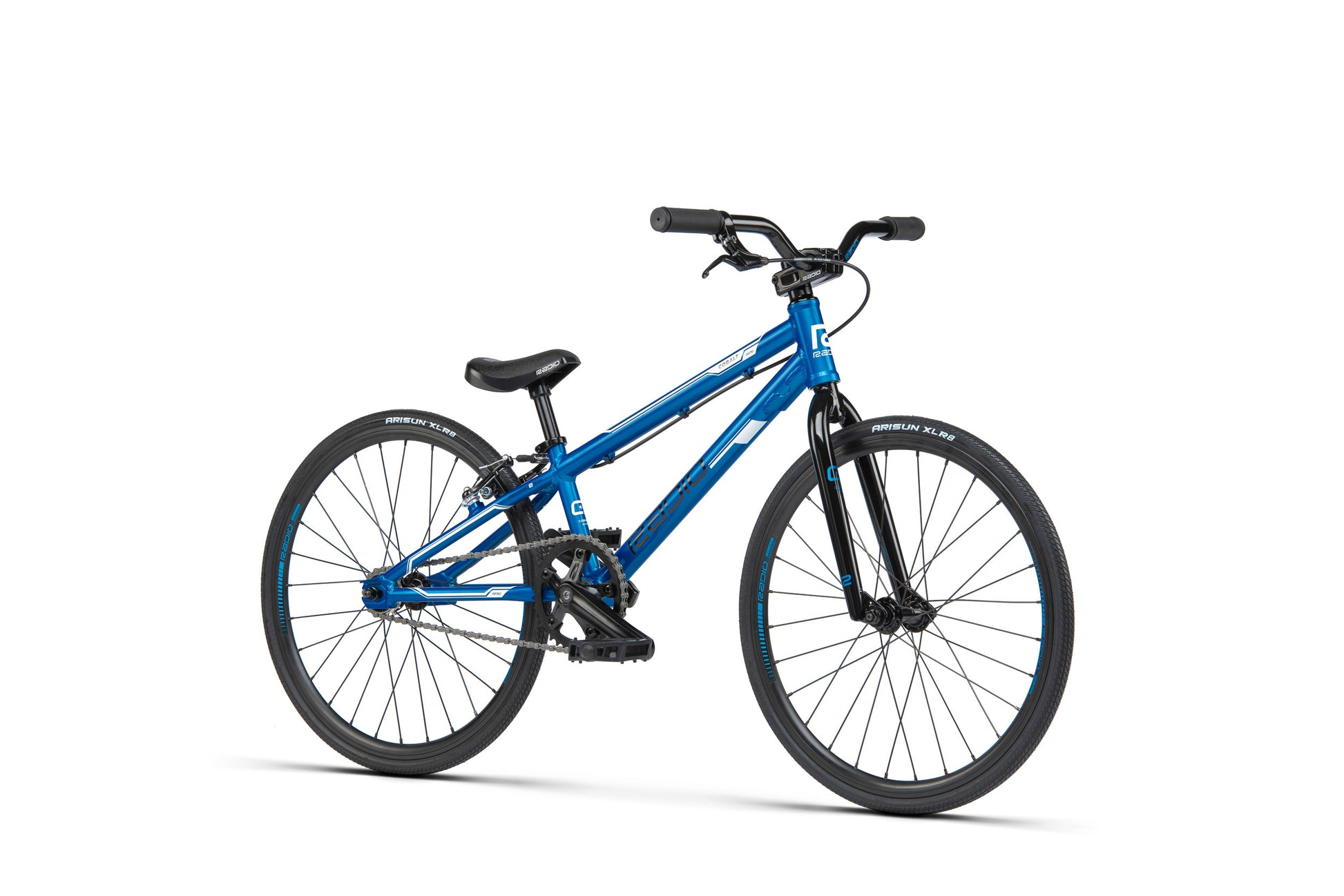

RADIO Cobalt Mini

INFO

THE COBALT LINE COMBINES PROVEN GEOMETRY AND DIALLED COMPONENTS GIVING YOU THE BEST START OUT OF THE GATE DURING YOUR FIRST DAYS RACING. THE COBALT MINI IS OUR PINT-SIZED MACHINE, THE SCALED DOWN FRAME AND LIGHTER BUILD KIT MAKE THIS THING UNRIVALLED OUT THERE ON THE TRACK.

FRESH OUT OF THE BOX FOR 2021 WITH INCREDIBLE NEW PAINT AND GRAPHICS, YOU’LL BE ABLE TO SPOT A COBALT ON THE TRACK VERY EASILY. ALL COBALT BIKES NOW FEATURE FULL SEALED FRONT HUBS AND INTEGRATED HEADSETS, MAKING THEM SIMPLY UNBEATABLE WHEN COMPARING PRICE TO SPEC. THE COBALT IS ONE SERIOUSLY UNSTOPPABLE MACHINE.

FRAME - 6061 T6 alloy, forged dropouts with int. chaintensioner

FORK - cr-mo, 1″ butted steerer tube, hi-ten fork legs, 23mm offset

HANDLEBAR - 4130 seamless cr-mo

GRIPS - Radio, diamond knurling, closed end, flangeless, 102mm length

STEM - Radio, Cobalt-toploader, ext. 40mm, alloy

HEADSET - Radio, integrated headset, sealed, 1″

BRAKE LEVER - PROMAX “XL-378” alloy brake rear

BRAKE - PROMAX “MV-87” alloy brake rear

CRANK - RADIO “Cobalt” forged alloy 3pc crank, 140mm long

BB - Radio, BSA square taper, sealed

PEDALS - Radio, Cobalt Junior, nylon

CHAIN - KMC, Z6, 1/2″ x 3/32″

SPROCKET - RADIO alloy, 38t sprocket

DRIVER - ATA, 16T, 1/2″ x 3/32″, cr-mo

FRONT HUB - RADIO “Cobalt” alloy CNC hub, fully sealed, 3/8″s, 28h, crmo axle

REAR HUB - RADIO “Cobalt” alloy CNC hub, fully sealed, 3/8″s, crmo axle, 28h, flip flop

RIMS - Radio, A-M5, double wall, 28H, alloy f&r

SEAT - RADIO “Mini” combo seat

SEAT POST - Radio 22.2mm alloy

SEAT CLAMP - Radio, seat clamp, forged, alloy

TIRES - Arisun, XLR8, 20″x 1-1/8″

WEIGHT - 7.79kg/ 17.18lbs

FRAME GEOMETRY

TOP TUBE LENGTH 17.5″

CHAIN STAY LENGTH 13.1″

HEAD TUBE ANGLE 72°

SEAT TUBE ANGLE 70°

BOTTOM BRACKET HEIGHT 10.5″
