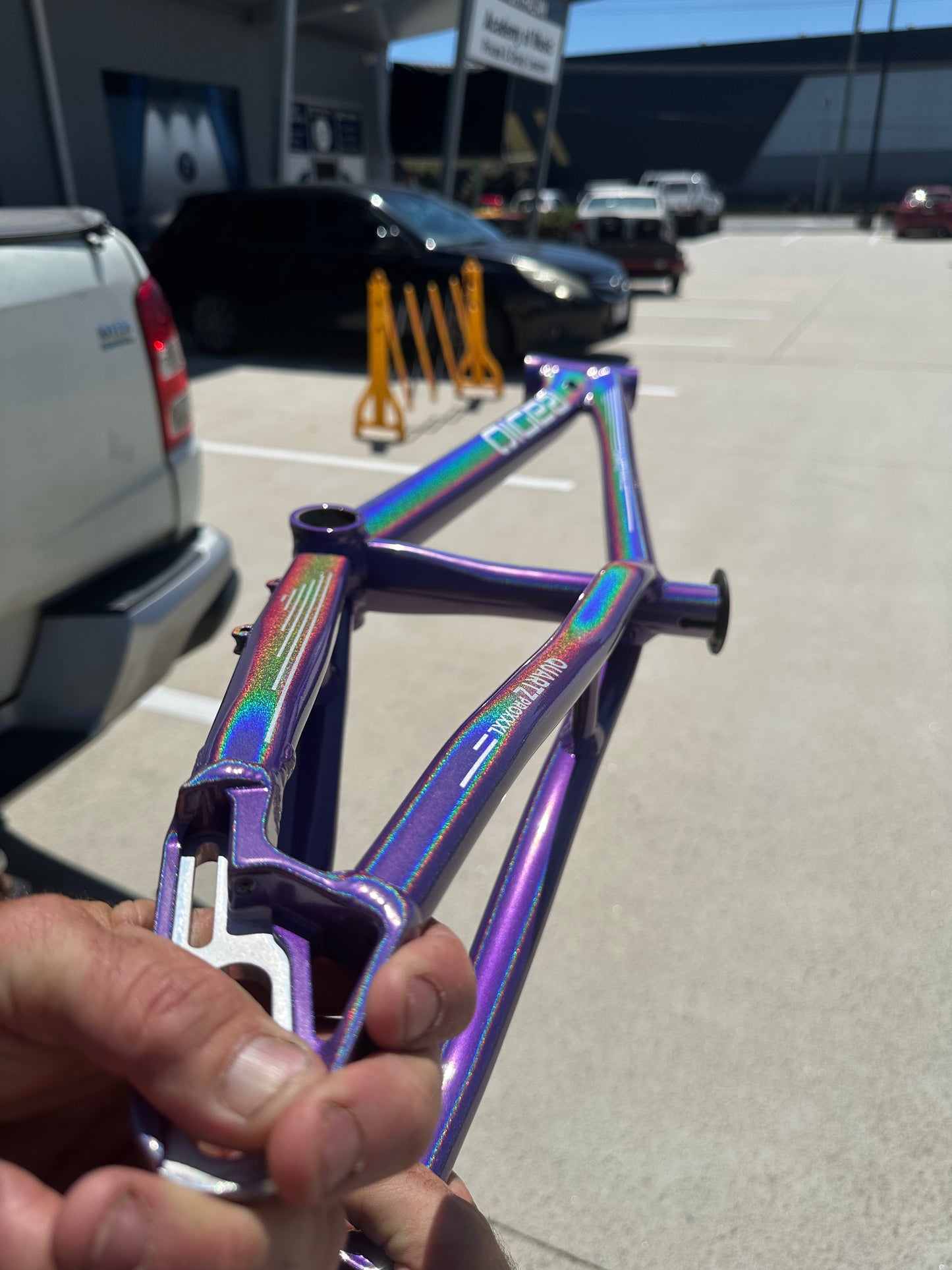

RADIO Quartz 2024 Frames

- NEW disc brake specific model with internal cable routing

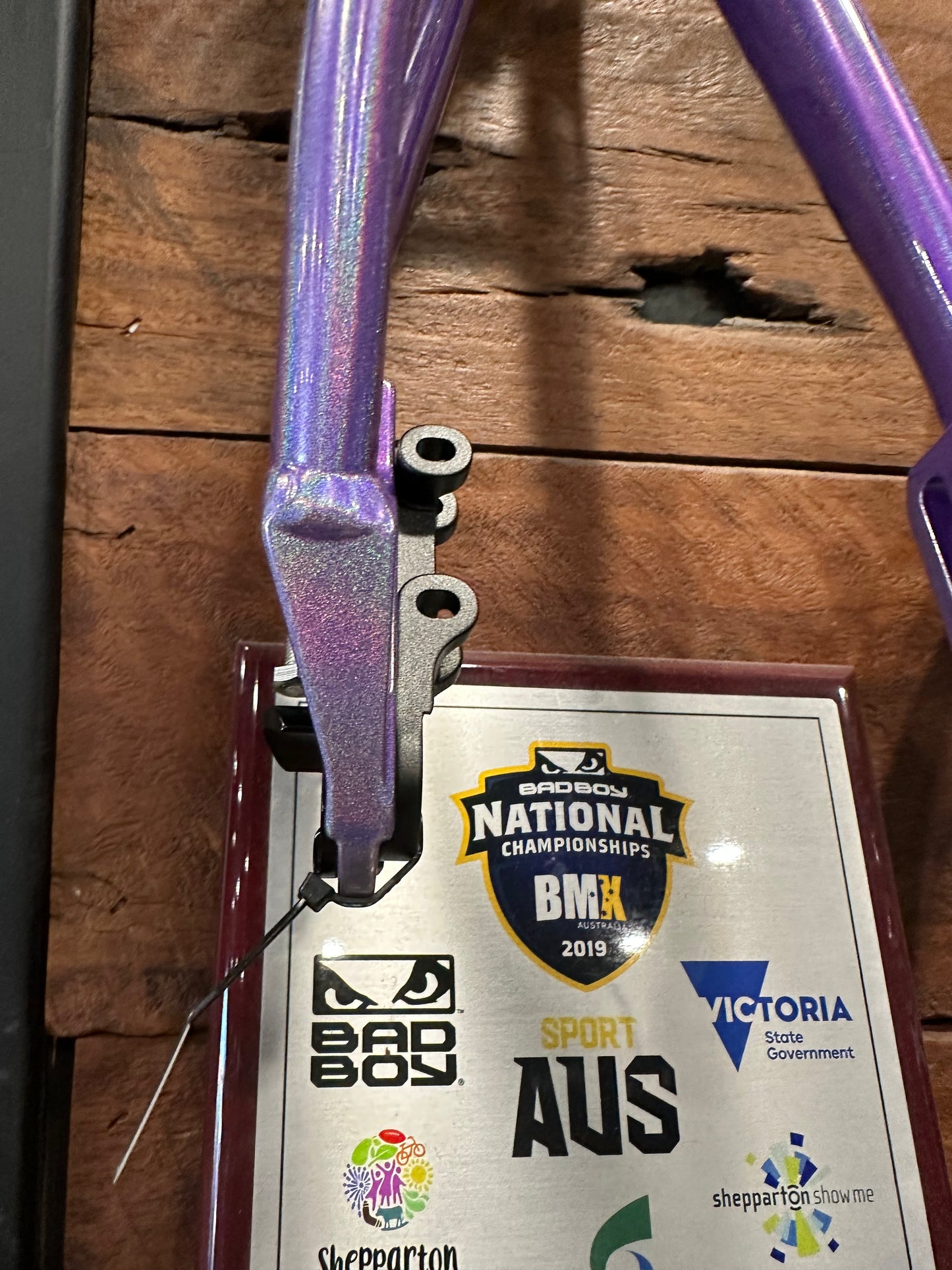

- Forged and CNC machined Sliding Dropout Disc System with integrated chain tensioner

- Super lightweight alloy frame (200g less than the Helium frame)

- x2 world championship wins

- Paradigm superior tubing

- For 10 & 15mm axles only

- Not compatible with v-brakes



Material - Hydroformed 6061 alloy, Paradigm tubing

Top tube length (actual) – Pro - 20.5” (520.7mm), Pro L - 20.9” (530mm), Pro XL - 21.25” (540mm), Pro XXL - 21.75” (552mm), Pro XXXL - 22.25” (565mm) & Pro XXXXL – 22.5” (572mm)

Chain stay length (min.) – Pro - 13.9” (353mm), Pro L - 13.9” (353mm), Pro XL - 14.5” (368mm), Pro XXL - 14.8” (376mm), Pro XXXL - 14.8” (376mm) & Pro XXXL – 15.2” (386mm)

Dropout size - New sliding dropout disc system for 10 & 15mm axles

Head tube angle -74°

Seat tube angle - 71°

Head tube size (full int.) - tapered 1-1/8” - 1.5” (125mm)

Seat post size - 27.2mm

Seat tube length – 231mm

Bottom bracket type - Euro, threaded, BSA 68mm

Bottom bracket height – 11.6”

Wheel size – 20 x 1.75”

Rider area – Pro L – 532.6mm, Pro XL – 540.7mm, Pro XXL – 551.9mm, Pro XXXL – 564.2mm & Pro XXXXL – 570.9mm

Weight – Pro XL – 1.655g
